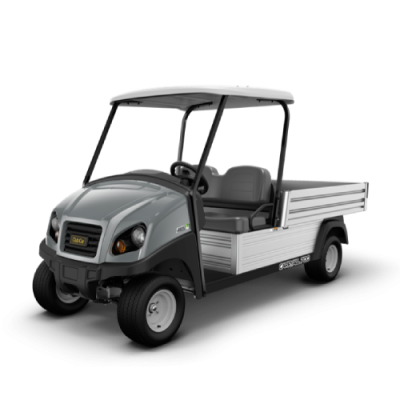

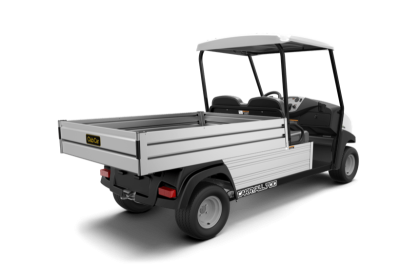

Carryall 700


Quantity
รายละเอียดสินค้า
  • Power
Engine48-volt DC
Horsepower3.7 hp (2.7 kW) rated; Peak 20 hp (14.9 kW)
Batteries(8) 6-volt Flooded Lead Acid
ChargerDeltaQ QuiQ (1 kW High Frequency)
Max. Speed5-17 mph (8-27 kph)
Fuel CapacityN/A

  • Steering & Suspension
SteeringSelf-adjusting Rack and Pinion
Front SuspensionIndependent leaf spring w/dual hydraulic shocks
Turning Radius162.8 in. (413.4 cm)
Ground Clearance5.6 in. (14.2 cm)

  • Brakes
Brakes4-wheel Mechanical Drum
Park BrakeFoot Operated, Multi-lock

  • Body & Tires
Body and FinishArmorFlexTM with automotive paint/clearcoat
Tires20 x 10 - 10, 6-ply

  • Dimensions & Weights

Overall Length137.5 in. (349.3 cm)
Overall Height47.1 in. (119.6 cm)
Wheelbase99.1 in. (251.7 cm)
Curb Weight1,475 lbs (669 kg)

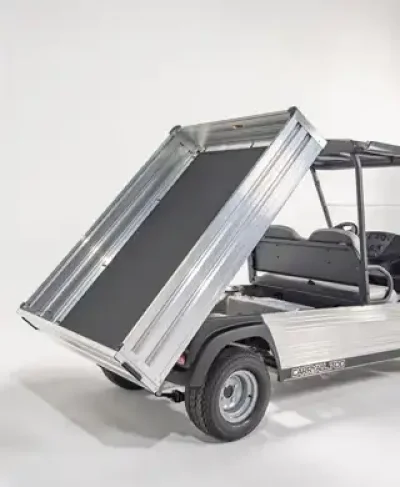

Bed (LxWxH)65.5 x 47.5 x 10.5 in (166.3 x 120.6 x 26.6 cm)
Bed Load Capacity1,000 lbs. (453.5 kg)
Towing Capacity1,500 lbs (680.3 kg)
Total Payload Capacity1,500 lbs (680.3 kg)

  • Warranty

Powertrain and Frame3-year/3,000-hour limited warranty
Remaining vehicle2-year limited warranty
Std Battery4-year limited warranty
